Application: peat, lignite, coal slurry, coal slime, raw coal, flotation clean coal, mixed clean coal, cleaned coal, washed coal and other materials in the coal industry.
1.9-76t/hProcessing capacity
9-285m³Cylinder capacity
Application: peat, lignite, coal slurry, coal slime, raw coal, flotation clean coal, mixed clean coal, cleaned coal, washed coal and other materials in the coal industry.
peat
raw coal
coal slurry
coal slime

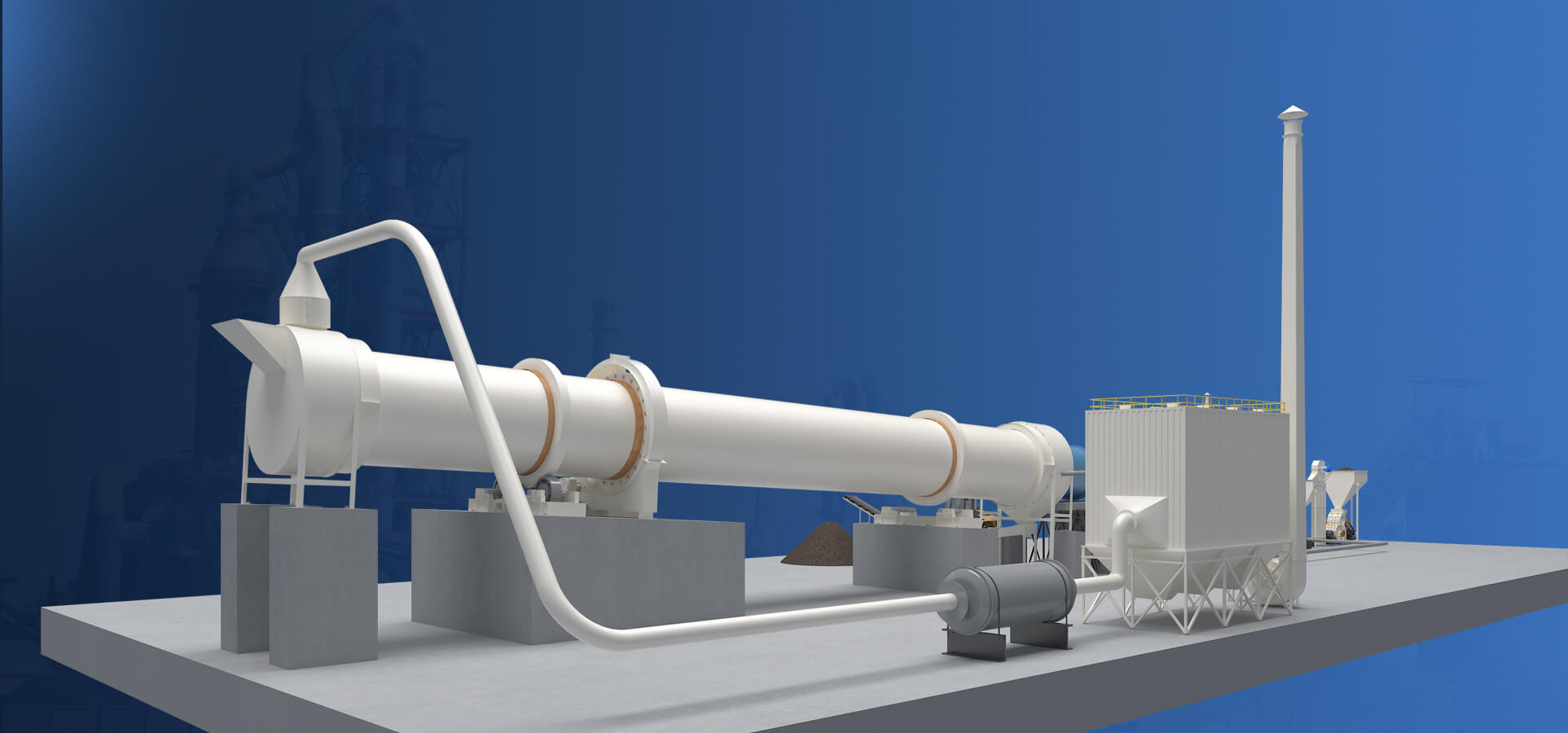

The peat dryer is a rotary drum dryer. It is a very mature drying equipment. It is suitable for drying coal slime, clean coal, and coal. Lignite, clean coal, sludge, magnetic, heavy, and float concentrates of metal and non-metallic minerals, and clay in the cement industry. It is characterized by high productivity and easy operation.
The peat is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end.
The thermal efficiency is 80% to 90%. The new internal structure strengthens heat conduction of dispersed materials, and eliminates the sticking phenomenon of the inner wall of the cylinder.
Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable.
The cylinder of the dryer is made of steel material, which has the characteristics of high hardness and high toughness.
The dryer system has good sealing performance, and is equipped with a complete dust removal device, with little dust spillage and a good operating environment.
Our drying equipment has been exported to more than 160 countries, such as Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, Pakistan, Egypt, etc. The following is the site of our customer's drying machine.
Capacity: 20 t/h
Processed Material: Sand
Capacity: 10 t/h
Processed Material: Coal
Rotary dryer
Indirect heat transfer dryer
| Spec./m | Shell Cubage | Capacity(t/h) | Installation(%) | Highest Inlet Air Temperature(℃) |
Main Motor |
| Ø1.2×8 | 9 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Ø1.2 ×10 | 11.3 | 2.4-3 | 3-5 | 700-800 | 7.5 |
| Ø 1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Ø 1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 |
| Ø1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Ø 1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 |
| Ø 1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Ø 2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Ø 2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 |
| Ø 2.2×16 | 60.8 | 13-16.2 | 3-5 | 700-800 | 22 |
| Ø 2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Ø 2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Ø 2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 |
| Ø 2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Ø 2.6×24 | 127.4 | 27.2-34 | 3-5 | 700-800 | 55 |
| Ø 3×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Ø 3×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 |
| Ø 3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Ø 3.6×28 | 285 | 60.8-76 | 3-5 | 700-800 | 160 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature(℃) |
| Ø 1.2×8 | 1.9-2.4 | 700-800 |
| Ø1.2 ×10 | 2.4-3 | 700-800 |
| Ø 1.5×12 | 4.5-5.7 | 700-800 |
| Ø 1.5×14 | 5.3-6.6 | 700-800 |
| Ø1.5×15 | 5.7-7.1 | 700-800 |
| Ø 1.8×12 | 6.5-8.1 | 700-800 |
| Ø 1.8×14 | 7.6-9.5 | 700-800 |
| Ø 2.2×12 | 9.7-12.2 | 700-800 |
| Ø 2.2×14 | 11.4-14.2 | 700-800 |
| Ø 2.2×16 | 13-16.2 | 700-800 |
| Ø 2.4×14 | 13.5-16.9 | 700-800 |
| Ø 2.4×18 | 17.4-21.7 | 700-800 |
| Ø 2.4×20 | 19.3-24.1 | 700-800 |
| Ø 2.4×22 | 21.2-26.5 | 700-800 |
| Ø 2.6×24 | 27.2-34 | 700-800 |
| Ø 3×20 | 30.1-37.7 | 700-800 |
| Ø 3×25 | 37.7-47.1 | 700-800 |
| Ø 3.2×25 | 42.9-53.6 | 700-800 |
| Ø 3.6×28 | 60.8-76 | 700-800 |
| Shell diameter × shell Length | Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity | Lifting blade form | Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
| Shell diameter × shell Length | Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
Focusing on induatrial rotary dryer for more than 40 years, Fote Machinery has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.
We guarantee that our products are all up to standards set for mining machinery.
We will deliver products timely by contract.
We will supply you with installation drawings, specifications and operation manual.
We offer lifetime warranty and components for products.
